Extrude Solid (#1646)
Options
Go to last post Go to first unread
Previous Topic Next Topic
unique
#1 Posted : Friday, September 19, 2008 4:14:19 PM(UTC)
unique

Rank: Senior Member

Joined: 6/24/2008(UTC)
Posts: 591
Hi Tim,

Dunno if its because ive been flipping between software but im sure I could
modify the Distance after creating the part in the Object info window by input the value & hitting apply ??? doesnt work now in 806b. It does work in the top reference bar but I prefer to work in object info to apply accurate dims.

Anyone else see this :confused:
Back to top
bradcan
#2 Posted : Monday, September 29, 2008 3:34:26 PM(UTC)
bradcan

Rank: Member

Joined: 8/3/2008(UTC)
Posts: 55
Hi unique
Yes you have been using the other one;) Oh yes you can change the distance from the history in ViaCAD. What you can't do, however, is change the direction. Oops .. actually it is possible to edit the direction of some types of extrude.
Back to top
mikeschn
#3 Posted : Monday, September 29, 2008 5:14:03 PM(UTC)
mikeschn

Rank: Senior Member

Joined: 8/21/2007(UTC)
Posts: 284

Thanks: 5 times
Was thanked: 2 time(s) in 2 post(s)
That needs to be added as a suggestion...

change direction

AND

change extrude type

UserPostedImage

Mike...
ViaCAD Pro 12 on Windows; Viacad Pro 14 on Mac
Back to top
ttrw
#4 Posted : Tuesday, September 30, 2008 9:56:37 AM(UTC)
ttrw

Rank: Senior Member

Joined: 4/1/2007(UTC)
Posts: 1,583

Was thanked: 2 time(s) in 2 post(s)
Can't change direction? Yes you can- by putting in a minus sign.

Is that what you mean?

Paul, I only thought what you have been trying to do was available with the parametric constraint function. ViaCAD is so nice when it comes to editing stuff in the past- from what I recall?
Back to top
unique
#5 Posted : Tuesday, September 30, 2008 12:07:04 PM(UTC)
unique

Rank: Senior Member

Joined: 6/24/2008(UTC)
Posts: 591
Guyz,

Just for the record I dont have the same problem with 810b, must have been a glitch in the earlier 806beta:confused:.

IMHO - I think it makes more sense to edit the part or feature etc IN 'Object Info' and not the bar along the top which was used to create the part. Anyway, for those interested you can change the direction in object info by changing the vectors. Changing 1 for -1 does exactly what you need ?

Does that make sense Tom ?;)
Back to top
Steve.M
#6 Posted : Tuesday, September 30, 2008 12:27:55 PM(UTC)
Steve.M

Rank: Senior Member

Joined: 6/18/2008(UTC)
Posts: 978

Was thanked: 1 time(s) in 1 post(s)
Hi Paul,

The inputs for the "Object info" and the top menu for the object are not consistent.

The top menu for the object will allow a minus for the Distance whereas in the "Object info" it will not. The top menu dX dY dZ give a relative distance in units whereas the "Object info" dX dY dZ give a direction vector based on trig.


- Steve
Back to top
unique
#7 Posted : Tuesday, September 30, 2008 1:27:00 PM(UTC)
unique

Rank: Senior Member

Joined: 6/24/2008(UTC)
Posts: 591
Originally Posted by: Steve.M Go to Quoted Post
Hi Paul,

The inputs for the "Object info" and the top menu for the object are not consistent.

The top menu for the object will allow a minus for the Distance whereas in the "Object info" it will not. The top menu dX dY dZ give a relative distance in units whereas the "Object info" dX dY dZ give a direction vector based on trig.


- Steve


Yup, I partly agree but what if the input curves are planar but tilted in more than one viewport...maybe after it was originally drawn ?. How can this work then and how/what would the UI need to manage that ?
Back to top
Steve.M
#8 Posted : Tuesday, September 30, 2008 5:02:20 PM(UTC)
Steve.M

Rank: Senior Member

Joined: 6/18/2008(UTC)
Posts: 978

Was thanked: 1 time(s) in 1 post(s)
Originally Posted by: unique Go to Quoted Post
Yup, I partly agree but what if the input curves are planar but tilted in more than one viewport...maybe after it was originally drawn ?.
An extrude from a planer curve that as been rotated will show in the object info as a direction vector based from the global workplane with a distance from the planer curves origin. (although rotating a polygon before its extrusion does not give an entry into the concept explorer)
If you extrude a planer curve and then rotate, then the object info will show the last command/feature on that object. So if the extruded object as just been rotated, then info about its rotation and origin will show. You would need to refer to the concept explorer to get other info about the actual extrude.


Originally Posted by: unique Go to Quoted Post
How can this work then and how/what would the UI need to manage that ?
I dont quite follow.
The concept explorer lists the features of which the object info can be seen for the chosen feature.
Back to top
mikeschn
#9 Posted : Tuesday, September 30, 2008 5:15:42 PM(UTC)
mikeschn

Rank: Senior Member

Joined: 8/21/2007(UTC)
Posts: 284

Thanks: 5 times
Was thanked: 2 time(s) in 2 post(s)
Originally Posted by: ttrw Go to Quoted Post
Can't change direction? Yes you can- by putting in a minus sign.

Is that what you mean?

Paul, I only thought what you have been trying to do was available with the parametric constraint function. ViaCAD is so nice when it comes to editing stuff in the past- from what I recall?

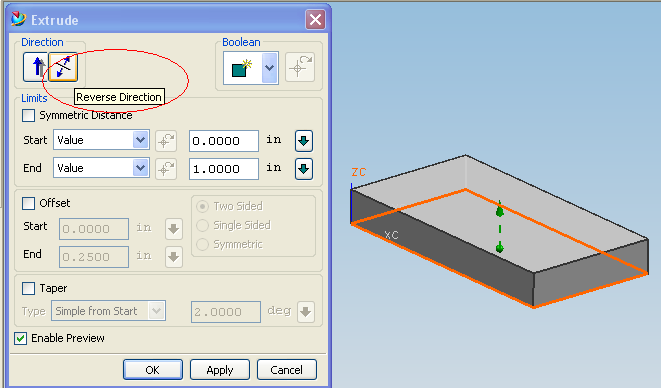

Ah yes, you can change the direction using the - sign.

But one could also add a button that does the same thing... perhaps it's a bit more intuitive?

UserPostedImage

Mike...

P.S. Tim, this is also a good dialog to point out that one could type in a -7 in the start value and a +5 in the end value if one does not want a completely symetrical extrusion. I used that feature a lot over the years.
ViaCAD Pro 12 on Windows; Viacad Pro 14 on Mac
Back to top
Steve.M
#10 Posted : Tuesday, September 30, 2008 5:28:50 PM(UTC)
Steve.M

Rank: Senior Member

Joined: 6/18/2008(UTC)
Posts: 978

Was thanked: 1 time(s) in 1 post(s)
Where did you get the extrude popup box from? I dont see this in VC v6 (PC)
Back to top
blowlamp
#11 Posted : Wednesday, October 1, 2008 2:06:26 AM(UTC)
blowlamp

Rank: Senior Member

Joined: 6/28/2008(UTC)
Posts: 648
It looks like that particular graphic comes from something like Unigraphics NX4 or 5.

Cheers, Martin.
Back to top
mikeschn
#12 Posted : Wednesday, October 1, 2008 5:03:12 AM(UTC)
mikeschn

Rank: Senior Member

Joined: 8/21/2007(UTC)
Posts: 284

Thanks: 5 times
Was thanked: 2 time(s) in 2 post(s)
Exactly, it comes from NX3. But NX3 has lots of ideas that we could use to polish up ViaCAD.

BTW, Pro/E has that button too!

UserPostedImage

Mike...
ViaCAD Pro 12 on Windows; Viacad Pro 14 on Mac
Back to top
jol
#13 Posted : Wednesday, October 1, 2008 5:35:46 AM(UTC)
jol

Rank: Senior Member

Joined: 2/26/2007(UTC)
Posts: 2,156

Was thanked: 1 time(s) in 1 post(s)
some good thinking Mike !!
Back to top
Steve.M
#14 Posted : Wednesday, October 1, 2008 9:49:57 AM(UTC)
Steve.M

Rank: Senior Member

Joined: 6/18/2008(UTC)
Posts: 978

Was thanked: 1 time(s) in 1 post(s)
Originally Posted by: mikeschn Go to Quoted Post
Exactly, it comes from NX3. But NX3 has lots of ideas that we could use to polish up ViaCAD.
There is a suggestions thread for suggestions.
Back to top
ttrw
#15 Posted : Wednesday, October 1, 2008 9:56:20 AM(UTC)
ttrw

Rank: Senior Member

Joined: 4/1/2007(UTC)
Posts: 1,583

Was thanked: 2 time(s) in 2 post(s)
I vote for a reverse button too :D

(yes you are right- the minus trick don't always work :eek:)
Back to top
mikeschn
#16 Posted : Wednesday, October 1, 2008 11:18:50 AM(UTC)
mikeschn

Rank: Senior Member

Joined: 8/21/2007(UTC)
Posts: 284

Thanks: 5 times
Was thanked: 2 time(s) in 2 post(s)
Tim reads the entire forum. I don't think I have to repost it under suggestions. What do you think Tim?

Mike...

Originally Posted by: Steve.M Go to Quoted Post
There is a suggestions thread for suggestions.
ViaCAD Pro 12 on Windows; Viacad Pro 14 on Mac
Back to top
Steve.M
#17 Posted : Wednesday, October 1, 2008 11:38:38 AM(UTC)
Steve.M

Rank: Senior Member

Joined: 6/18/2008(UTC)
Posts: 978

Was thanked: 1 time(s) in 1 post(s)
Originally Posted by: mikeschn Go to Quoted Post
Tim reads the entire forum. I don't think I have to repost it under suggestions. What do you think Tim?

Mike...
This thread is/was about current implementations, why take it off topic with suggestions?
Back to top
unique
#18 Posted : Wednesday, October 1, 2008 12:22:58 PM(UTC)
unique

Rank: Senior Member

Joined: 6/24/2008(UTC)
Posts: 591
Originally Posted by: Steve.M Go to Quoted Post
This thread is/was about current implementations, why take it off topic with suggestions?


I like you idea Mike but I tend to agree with Steve, this happens on a regular basis here (mentioing no names Tom ;)) but that is why there is a suggestions area ?. You can always quote this link if it helps get across your point ;)

Where were we now ?:D
Back to top
mikeschn
#19 Posted : Wednesday, October 1, 2008 2:14:02 PM(UTC)
mikeschn

Rank: Senior Member

Joined: 8/21/2007(UTC)
Posts: 284

Thanks: 5 times
Was thanked: 2 time(s) in 2 post(s)
Okay, I'll put it in the suggestion forum.

Mike...
ViaCAD Pro 12 on Windows; Viacad Pro 14 on Mac
Back to top
bradcan
#20 Posted : Friday, October 3, 2008 3:18:17 AM(UTC)
bradcan

Rank: Member

Joined: 8/3/2008(UTC)
Posts: 55
This thread has gotten out of hand. Can we get back on topic?

There is something very weird about editing extrude data.:confused:

See the attached extrude.vc3

The first extrude in the tree has object info of magnitude ONLY. The second has magnitude and a direction vector!

The first cannot be edited in the object info, the second can!

Sometimes the top menu data entry fields appear, sometimes they don't!

Starting from a clean open of ViaCad, select the model, open concept explorer and the info dialogs. Expand the tree so the two extrudes can be observed. So far NO top menu data entry fields! Select any tool then de-select it. Now select the model again. Top menu data fields appear now.

The numbers in the top menu data entry fields look like extrude data, but don't seem to relate to the item selected in the history tree. They do however modify the selected item! In a very unpredictable way, obviously!

~ o~

Where is the extrude vector for the first extrude? Why can't I edit the object info?

Why does the top menu appear? Why does it allow me to edit anything?

I'm getting very distracted trying to separate the bugs from the learning curve.:mad: (please, please, please a known bugs area)
File Attachment(s):
extrude.vc3 (18kb) downloaded 5 time(s).

You cannot view/download attachments. Try to login or register.
Back to top
